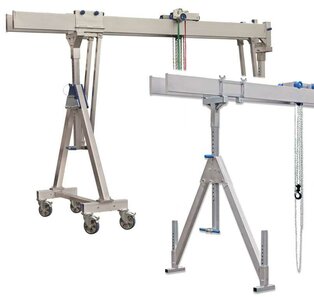

Mobile or stationary aluminum gantry crane - available from stock
Max. load capacity 5,000 kg, particularly short assembly time
TaluK aluminum gantry crane 3,2 t
- Load capacity 3.200 kg
- Light width max. 5.000 mm
- Clearance height max: 5.100 mm
- Max. Overall height 5.572 mm
Aluminum portal crane 1.500 kg
- Load capacity 1.500 kg
- Max. Overall height: 4.220 mm (movable)
- Max. Overall height: 4.440 mm (stationary)
- Double girder or single girder
TaluK aluminum portal crane 5 t
- Carrying capacity 5.000 kg
- Light width max. 5.000 mm
- Clearance height max: 5.100 mm
- Max. Overall height 5.572 mm
Aluminum portal crane 2.000 kg
- Carrying capacity 2.000 kg
- Max. Overall height: 4.254 mm (movable)
- Max. Overall height: 4.437 mm (stationary)
- Doppelträger
Aluminum portal crane 1.000 kg
- Load capacity 1.000 kg
- Max. Overall height: 4.220 mm (fahrbar)
- Max. Overall height: 4.440 mm (stationär)
- Double girder or single girder
Aluminum portal crane 3.000 kg
- Carrying capacity 3.000 kg
- Max. Overall height: 4.254 mm (movable)
- Max. Overall height: 4.437 mm (stationary)
- Doppelträger
An aluminum gantry crane can be purchased as a quick-assembly gantry crane or gantry crane. Thanks to the use of aluminum, the gantry crane has a low dead weight - in conjunction with the sophisticated, plug-in assembly technology, it can be easily assembled and disassembled without special tools. The aluminum gantry crane can be used very flexibly. Depending on the version, it can move loads of up to 5,000 kg with possible beam lengths of up to 8,000 mm.
- Quick assembly without special tools
- Low dead weight
- Divisible beams
- Load capacities up to 5,000 kg
- Beam lengths up to 8,000 mm
- Height and width adjustable
A mobile gantry crane is set up
This video shows the assembly of an aluminum gantry crane with double girder, mobile under load and 3 t load capacity.
3 basic sizes
each with additional adjustment range on the beam supports (stationary and mobile version) and adjustable feet (stationary only)
Variable use
The aluminum gantry crane is available both for stationary use and in versions that can be moved under load (mobile version). The height and clearance width of each version of the gantry crane can be adjusted. The crane's range of applications is increased by folding side frames, while the double girder version has a maximum clearance height thanks to the lockable trolley on top. The stationary aluminum gantry crane can be converted from a long single girder to a short double girder using divisible girders (the division ratio must be specified when ordering).
Areas of application:
- In areas that are difficult to access, e.g. stairwells
- On assembly sites, e.g. stonemason's workshops
- For loading and unloading vehicles
- In special machine construction
- Designing mobile workstations
Accessories for the portal crane
Divisible aluminum carrier
The longest and bulkiest component of a gantry crane is, of course, the aluminum girders, which can be up to 8 m long. As our gantry cranes are also used in mobile applications, the long beams can also be ordered in a divisible or plug-in version.
Stationary aluminum gantry cranes equipped with this divisible girder can, for example, be converted from a gantry crane with a long single girder to a double girder gantry crane of half the length. This is possible because the two girder sections can also be installed individually, both as single and double girders.
You can also order the divisible aluminum girder for the mobile models of the aluminum gantry crane. However, for technical reasons, only the beam section with the slip-on sleeve can be used when converting to a shortened single or double beam.
You can also retrofit existing aluminum gantry cranes from this series with these divisible aluminum beams.
Save even more space.
This partial or plug-in aluminum girder is suitable for all mobile or stationary aluminum gantry cranes with single and double girders.
Other accessories:
- Pulley block or lever hoist
- Electric chain hoist
- Power supply units for electric hoists - supplied with 400 V/ 16 A three-phase current, 50 Hz and 5-pole switch, phase inverter CEE connection and PUR helical cable
- Transport box - Systematic stowage of the gantry crane
- Wall bracket - Fastening the aluminum support to the wall on one side, e.g. above window or door frames
- Circumferential belt - The trolley can be moved by the user outside the danger zone
- Chassis with 4 swivel castors - Allows the gantry crane to be moved when unloaded
Various versions available
The lightweight and easy-to-install aluminum gantry cranes are available in different versions: As single girders, double girders or 2 t / 3 t double girders. They are all available in two versions: foldable, stationary or mobile under load. The latter version is equipped with four steel swivel castors with heavy-duty polyurethane tread and integrated wheel and slewing ring brakes. The small, medium and high aluminum gantry crane versions also differ in terms of the beam lengths, the dimensions of the lower edges of the aluminum beams and the weight.
Aluminum gantry cranes with folding side frames can optionally be designed to be pluggable or divisible. Both girder sections can then be used as individual girders if required. The standard scope of delivery of the mobile gantry cranes includes aluminum girders, two side frames (one with horizontal adjuster), a lockable trolley as well as documentation and a test book. Please note that lifting gear is not included in the scope of delivery and must be ordered separately.
Buy aluminum portal crane
Do you need an aluminum gantry crane for hard-to-reach areas or simply as a loyal helper in your workshop? Then get in touch with our specialist advisors.
Phone: +494102 7789-600
E-Mail: info@transprotec.de
DOWNLOADS
FAQ: Questions and answers about aluminum gantry cranes
- Why is the aluminum gantry crane ideal for fast assembly work?
The aluminum gantry crane is ideal for quick assembly jobs thanks to its tool-free assembly and lightweight aluminum design. These features allow for efficient transportation and easy installation, making the crane an excellent choice for various job sites. It offers high flexibility and efficiency, especially in time-critical projects where speed and adaptability are crucial.
- How does the design of the aluminum gantry crane support variable use in industry?
Thanks to its divisible beams and comprehensive adjustment options, the aluminum gantry crane offers exceptional flexibility for use under different load conditions and at different locations. Its adaptability in height and width allows it to be used in a variety of working environments, from production to logistics. These features make it an indispensable tool in modern industry.
- What role do the divisible girders play in optimizing space on the aluminium gantry crane?
The divisible beams of the aluminium gantry crane offer decisive advantages for space optimization by allowing flexible adjustment of the crane length. This adaptability is particularly valuable in confined or variable working areas as it allows maximum use of space. The ability to configure the crane as required makes it an optimal solution for locations with limited space and increases the efficiency of use.
