Electric wire rope winch FD-E
Lifting force up to 5,250 kg | Voltage: 400 V

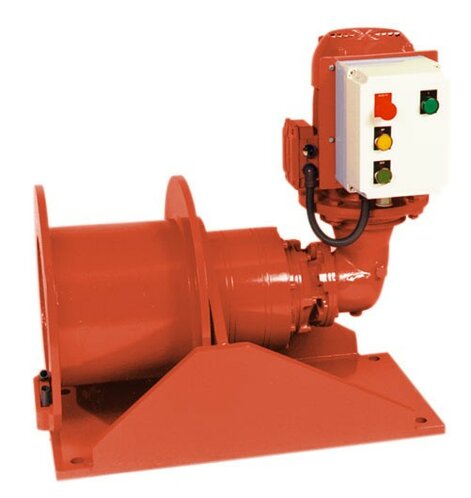

The electric cable winches in the FD series are characterized by their compact design. Compared to conventional cable winches, the length of the cable winch in the FD-E series has been significantly reduced thanks to the planetary gearbox integrated into the cable drum. The FD-E cable winches are usually used as hoisting or pulling winches for applications with shorter cable lengths and therefore compact drum dimensions. Due to the compact drum dimensions, it is possible to attach the drum directly to the gearbox on one side. This single-sided mounting also has a positive effect on the compact design.
Technical parameters:
- Protection class: IP 54
- Three-phase brake motor with aluminum housing for 3-Ph / 400 Volt / 50 Hz
- Cable drum with cable fastening on the drum flange
- Drum bearing, one-sided
- Planetary gear
Mechanical options:
- Drives in Ex version
- Further operating voltages
- Further winding speeds
- Drum protection cover
- Offshore version
Electrical options:
- Contactor control, protection class IP 55
- Spindle limit switch, designed as an emergency limit switch or additionally as an operating limit switch
- Radio remote control
- Pendant control, protection class IP 65
- Frequency control for infinitely variable
- speed control
- Infrared remote control
- Slack rope control
- Contactor control, protection class IP 55
- Spindle limit switch, designed as an emergency limit switch or additionally as an operating limit switch
- Radio remote control
- Pendant control, protection class IP 65
- Frequency control for infinitely variable
- speed control
- Infrared remote control
- Slack rope control
| Electric wire rope winch FD-E | 300 | 301 | 303 | 305 | 306 | 307 |
| Max. Lifting force in 1st rope position (kg) | 950 | 1850 | 2300 | 3350 | 4100 | 5250 |
| Max. Lifting force top layer (kg/layer) | 800/4 | 1470/4 | 1970/3 | 2800/3 | 3500/3 | 4490/3 |
| Recommended rope diameter (mm) | 8 | 11 | 12 | 14 | 16 | 18 |
| Speed 1st rope layer (m/min) | 8,5 | 9 | 7 | 9 | 7 | 12 |
| Speed top rope layer (m/min) | 10 | 11 | 8,5 | 11 | 8,5 | 14 |
| Rope take-up 1st rope layer (m) | 15 | 10 | 11 | 10 | 15 | 18 |
| Rope pick-up in all positions (m/layers) | 70/4 | 53/4 | 41/3 | 40/3 | 56/3 | 67/3 |
| Motor power 400 V (kW) | 1,5 | 3 | 3 | 5,5 | 5,5 | 11 |
| Prices excl. VAT, shipping costs excl. accessories | from 5.177 € | from 5.547 € | from 5.964 € | from 7.434 € | from 9.093 € | from 13.445 € |
Dimensions electric wire rope winch FD-E
| Dimensions (mm) | Electric wire rope winch FD-E | |||||
| 300 | 301 | 303 | 305 | 306 | 307 | |
| Weight (kg) | 125 | 130 | 175 | 240 | 330 | 590 |
| D1 | 244 | 244 | 272 | 272 | 355 | 406 |
| D2 | 380 | 380 | 410 | 410 | 500 | 625 |
| L1 | 176 | 176 | 191 | 210 | 266 | 310 |
| L2 | 310 | 310 | 350 | 350 | 455 | 510 |
| L3 | 93 | 93 | 106 | 116 | 146 | 175 |
| L4 (E) | 736 | 796 | 818 | 1030 | 1100 | 1313 |
| L4 (H) | 520 | 558 | 595 | 625 | 780 | 885 |
| L4 (L) | 765 | 785 | 905 | 950 | 1110 | 1215 |
| L5 | 240 | 240 | 275 | 275 | 350 | 40 |
| L6 | 44 | 44 | 50 | 50 | 70 | 75 |
| H1 | 215 | 215 | 235 | 235 | 285 | 348 |
| H2 | 405 | 405 | 440 | 440 | 535 | 660 |
| W1 | 440 | 440 | 500 | 500 | 580 | 750 |
| W2 | 400 | 400 | 450 | 450 | 520 | 680 |
| Hole Ø | 18 | 18 | 22 | 22 | 27 | 27 |
