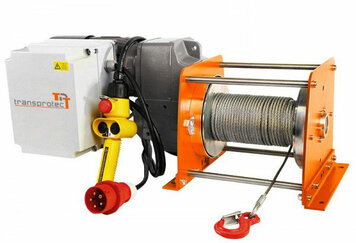

Electric wire rope winch ETSW-ST

Available at short notice - available in 4 load capacities

The winch frame of the TPW700 electric cable winch is made of galvanized aluminium. The lifting capacity in the 1st position is 710 kg.

Equipment features:

Contactor control IP 55, 3 PH / 400 V / 50 Hz
- Control voltage 24 VAC
mounted and wired on the winch frame.
Manual control button IP 65 single-stage
(UP / DOWN / EMERGENCY STOP)
3.0 m control cable
3.0 m mains cable
incl. CEE plug IP44
40 m rope Ø 6 mm
(6x19; MBK 23 kN)
with thimble and eye load hook,
Fully assembled on the winch
Documentation: simple in German

Technical parameters:

Operating voltages, optional:
- Three-phase current: 3 Ph / 400 V / 50 Hz
- Alternating current: 1 Ph / 230 V / 50 Hz
Drive unit group: M3 (1 Bm)
Duty cycle: 60% (reference cycle 10 min)
Up to 150 operations in one hour
Protection class: IP55
Ambient temperatures during operation:
- -10°C to +40°C

Basic equipment electric cable winch:

Grooved rope drum
From 1,000 kg electrical overload protection
spur gear
Disc brake
Manual control button with 3 m control cable>
Safety control with low-voltage circuit
Mains plug with 3 m mains cable
Documentation in German or English
Test book, winch manual
EC Declaration of Incorporation

Cable winch control:

The ETSW-ST electric cable winch is always equipped with a contactor control unit (control voltage 42 V), which is already equipped with a large number of safety devices as standard. The control unit is installed in a compact control cabinet (protection class: IP55). To prevent the load from slipping in the event of an emergency stop, the cable winch control unit is always supplied with a separate brake control.

Optional equipment:

The ETSW-ST electric wire rope winches can also be used for special applications such as in explosion-protected areas, on ships or on stages / in studios thanks to their modular design.

Special equipment:

Operating limit switch, designed as spindle limit switch
Drum protection cover
Rope pressure device
CE declaration of conformity (with full equipment)

Basic version electric cable winch ETSW

Type Electric cable winch ETSW-ST	250	500	1000	2000
Lifting capacity (kg)
1. Position	250	500	990	2000
2. Position	220	440	865	1750
3. Position	195	390	770	1550
4. Position	175	350	695	1400
5. Position	160	320	630	1270
6. Position	145	295	580	1165
7. Position	135	270	535	1075
Robe-Ø (mm)	5	6	8	12
Rope holder (m)
1. Position	7	7	6	5
2. Position	16	16	16	14
3. Position	27	27	26	24
4. Position	38	39	39	35
5. Position	51	52	51	48
6. Position	65	65	65	61
7. Position	81	81	80	75
Length of rope remaining on drum (m)	1	1,2	1,6	2,4
Speed (m/min)
1. Position	8	8	8	8 (4)*
2. Position	9	9	9	9 (4)*
3. Position	10	10	10	10 (5)*
4. Position	11	11	11	11 (5)*
5. Position	12	12	12	12 (6)*
6. Position	13	13	13	13 (6)*
7. Position	14	14	14	14 (7)*
Motor power (kW)	0,37	0,75	1,5	2,6
ETSW-ST 400 V	from 1.898 €	from 2.218 €	from 3.091 €	from 4.625 €
ETSW-ST 230 V	from 2.141 €	from 2.413 €	from 3.331 €	from 5.266 €

Prices plus VAT, shipping costs excl. accessories

()* = Values for the 230 V version

Basic version electric cable winch ETSW

Dimensions ETSW-ST	250	500	1000	2000
L1 (mm)	700	770	860	1000 (1050)*
L2 (mm)	360	360	400	470
B (mm)	270	320	400	550
B2 (mm)	380	420	470	550
H (mm)	300	335	460	620
LTR (mm)	200	200	200	200
DTR (mm)	65	80	105	155
DFL (mm)	155	190	250	370
LB (mm)	330	330	360	420
BB1 (mm)	220	250	350	500
BB2 (mm)	-	-	220	320
DB (mm)	11	12	12	16
Weight without accessories (approx. kg)	40	65	110	240 (250)*
