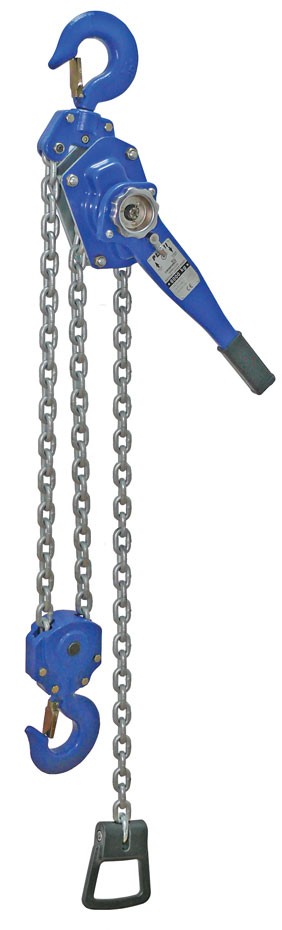

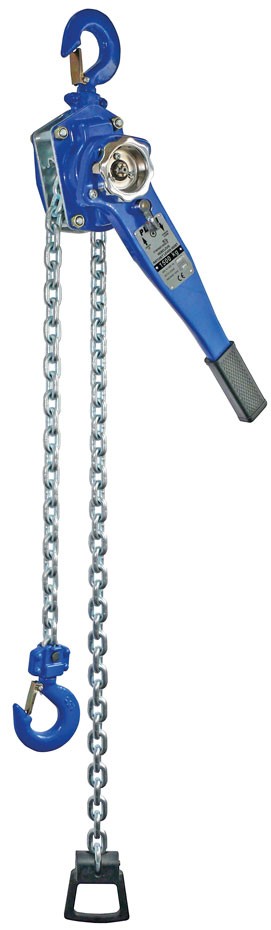

Lever hoist TLX

Technical features:

Simple freewheel
The unloaded chain can be easily pulled through the device in the freewheel by positioning the selector switch in the center position.
New chain end piece
Reliably holds the load as additional safety in the unlikely event of a brake failure that cannot be pulled through the device with the load chain.
Rotating hooks
The freely rotating forged lifting hooks and load hooks are made of heat-treated tempered steel and each have spring-loaded, galvanized hook safety catches.
Rust protection
Screws, nuts and bolts are galvanized and prevent corrosion even when used outdoors.

The TLX lever hoist is characterized by its easy handling, good quality and long service life under high loads. The device can be used as a versatile lifting and tensioning device. The TLX is used in the industrial sector, for assembly work, in construction and trade as well as in goods transportation.

Type TLX-	0,75	1,5	3	6
Load capacity (t)	0,75	1,5	3	6
Standard stroke (m)	1,5	1,5	1,5	1,5
Leverage force (daN)	20	26	38	39
Number of chain strands	1	1	1	2
Chain size (mm)	6 x 18	7,1 x 21	10 x 30	10 x 30

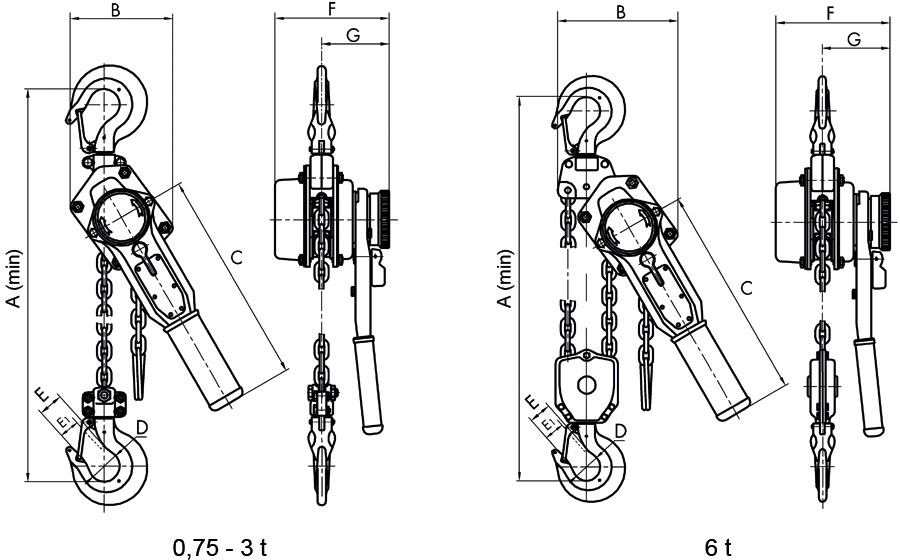

A: min. Overall height (mm)	340	360	480	600
Dimensions: B (mm)	135	160	210	250
C (mm)	296	420	420	420
D (mm)	37	37	47	69
E (mm)	23,7	31,6	35,3	46
E1 (mm)	18,9	27,2	30,8	41,2
F (mm)	150	170	190	190
G (mm)	90	98	105	105
Weight with standard stroke (kg)	6,8	10,1	19,6	29
Weight per meter extra stroke (kg)	0,8	0,7	2,2	4,4
