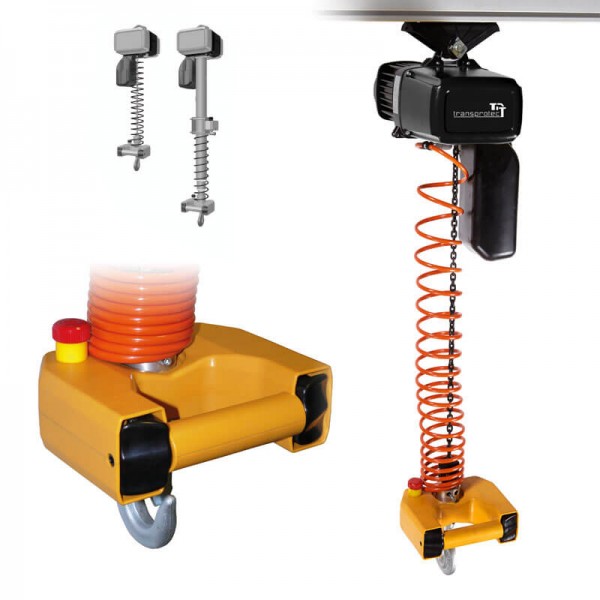

The T-ECH-KH-Lift electric chain hoist is based on the robust and tried-and-tested T-GCH electric chain hoist. The chain hoist is ideal for handling loads with one hand, as the load handling attachment is directly connected to the manipulation handle. Fast, precise and effortless positioning is therefore possible for right and left-handed users.
The chain hoists are dust-tight and protected against powerful water jets (IP65), making them ideal for outdoor use.
You can choose to receive your electric chain hoist with hook or eyelet suspension and with a CEE plug including cable.
We can create a customized electric chain hoist for you on request.
Please use the comment function in the price inquiry for an individual lifting height and control cable extension. We will be happy to advise you by telephone on 04102 7789-600
Features:
Optional
We offer periodic inspections (UVV) for your electric chain hoist.
Type | Load capacity in kg according to ISO (FEM)* | Lifting speed | Chain size | Motor-Power | 3x400V / 50 Hz | Weight with 3 m Hub | ||||
| M5 | M6 | M6 | M6 | M6 | m/min | mm | kW | A | kg |
| T-ECH-KH Lift 250/1NF3 | 250 | 200 | 160 | 125 | 100 | 8/2 | 3,7 x 10,75 | 0,37/0,1 | 2,0/1,2 | 19 |
| T-ECH-KH Lift 250/1SF3 | 125 | 100 | 80 | - | - | 16/4 | 3,7 x 10,75 | 0,37/0,1 | 2,0/1,2 | 19 |
| T-ECH-KH Lift 250/1N1Ph | 125 | - | - | - | - | 8 | 3,7 x 10,75 | 0,59/0,1 | 2,0/1,2 | 19 |
| T-ECH-KH Lift 250/1NL1Ph | 250 | - | - | - | - | 4 | 3,7 x 10,75 | 0,59/0,1 | 2,0/1,2 | 19 |
* ISO (FEM) classification: Number of operations on the control switch per hour
M5 (2m) = 240 operations per hour, 40% ED
M6 (3m) = 300 operations per hour, 50% duty cycle
Load capacity: up to 500 kg
Suspension / chassis: eyelet suspension
Voltage: 400 Volt
Control: Contactor control
