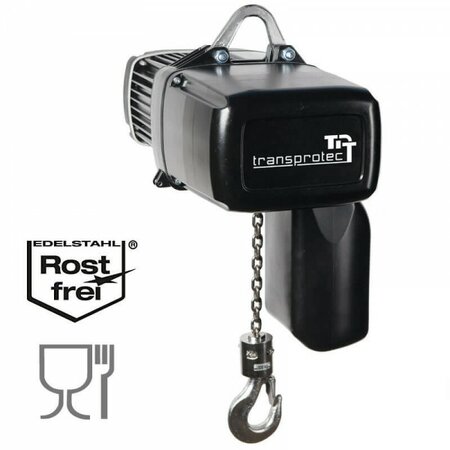

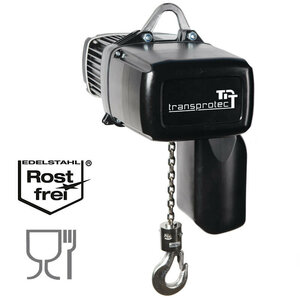

T-ECHR electric chain hoist for the food industry

Load capacity up to 1,000 kg, corrosion-resistant

Electric chain hoists for the food sector are characterized by their corrosion-resistant chain, load hook, equipment hook and chain block.
Furthermore, the devices are lubricated with food-compatible greases.
The chain hoists can be supplied with protection class IP65 on request. Especially for applications in aggressive environments, the electric chain hoists can be painted with a special coating designed for this purpose.

The T-ECHR electric chain hoist is particularly suitable for

Food industry
pharmaceutical industry
chemical industry
waste water treatment plants
outdoor use in general

We can create a customized electric chain hoist for you on request.
Please use the comment function in the price inquiry for an individual lifting height and control cable extension. We will be happy to advise you by telephone on +494102 7789-600

elektrokettenzug-t-echr-lebensmittel-edelstahl

Request now!

Technical properties:

Specially designed for applications in aggressive environments (resistant to acids, alkalis and other substances)
Chain, chain equipment parts, hooks and screws in corrosion-resistant design
Maximum reliability thanks to protection class IP65
Load capacities of up to 1,250 kg (2-strand)
Cataphoresis-coated housing (cathodic dip coating)
With food grade grease

Optionally available:

with pressure relief valve
Manual or motorized chassis in corrosion-resistant design

We offer periodic inspections (UVV) for your electric chain hoist.

Type	Cords	*Load capacity according to FEM in kg**		Lifting speed in m/min
Type	Cords	M4 (1Am)	M5 (2m)	Main lift	Fine stroke
T-ECHR-500-1N	1	320	250	8	-
T-ECHR-500-1NF	1	320	250	8	2
T-ECHR-500-2N	2	630	500	4	-
T-ECHR-500-2NF	2	630	500	4	1
T-ECHR-500-1NL-1ph**	1	320	250	4	-
T-ECHR-500-2NL-1ph**	2	630	500	2	-
T-ECHR-1000-1N	1	630	500	8	-
T-ECHR-1000-1NF	1	630	500	8	2
T-ECHR-1000-2N	2	1.250	1.000	4	-
T-ECHR-1000-2NF	2	1.250	1.000	4	1

** Modelle mit der Bezeichnung 1ph sind mit einem 1-Phasen-Motor (230 V) ausgestattet.

*Die ISO (FEM) Einstufung der Elektro-Kettenzüge gibt Auskunft über die max. Anzahl der Betätigungen am Steuerschalter pro Stunde:

ISO (FEM)	Betätigungen pro Stunde	Einschaltdauer
M3 (1Bm)	150	25% ED
M4 (1Am)	180	30% ED
M5 (2m)	240	40% ED
M6 (3m)	300	50% ED
M7 (4m)	360	60% ED

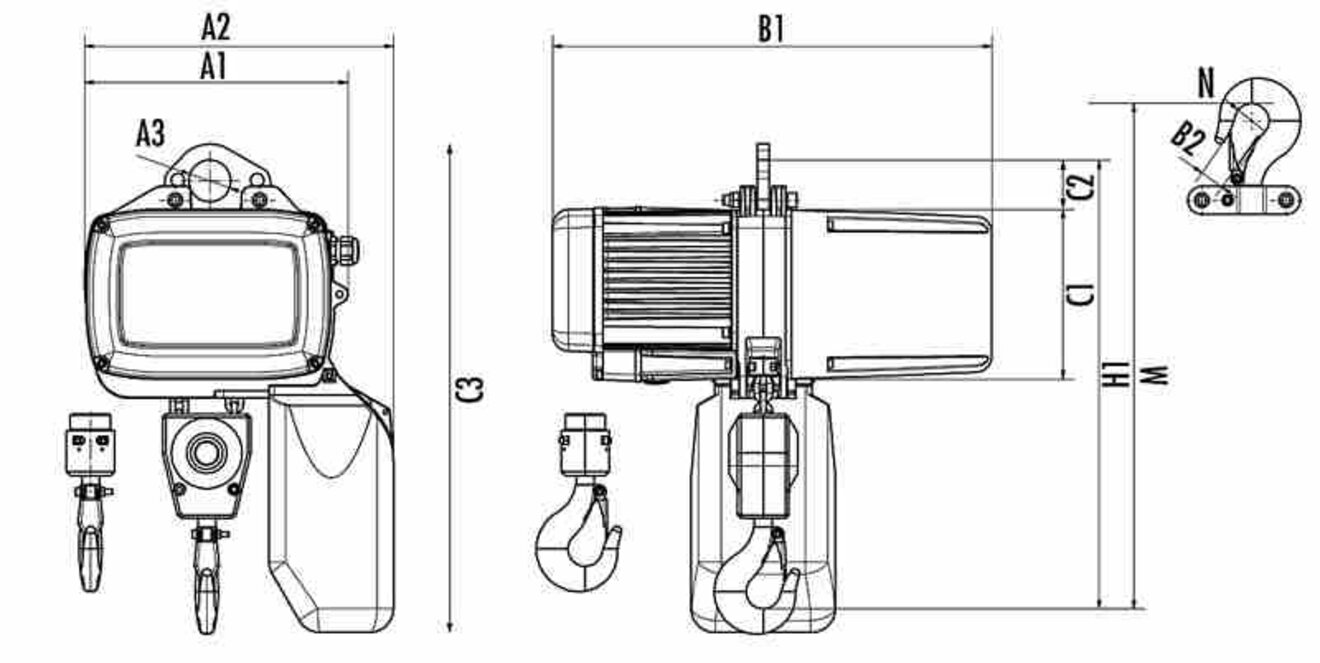

Dimensions electric chain hoist T-ECHR

Electric chain hoist with hook or eye

Type	A1 (mm)	A2 (mm)	A3 (mm)	B1 (mm)	B2 (mm)	C1 (mm)	C2 (mm)	C3 (mm)	H1 (mm)	M (mm)	N (mm)
T-ECHR 500	246	296	Ø 40	444	22	162	56	452	424	489	36
T-ECHR 1000	328	385	Ø 52	548	31	212	85	589	560	630	43
