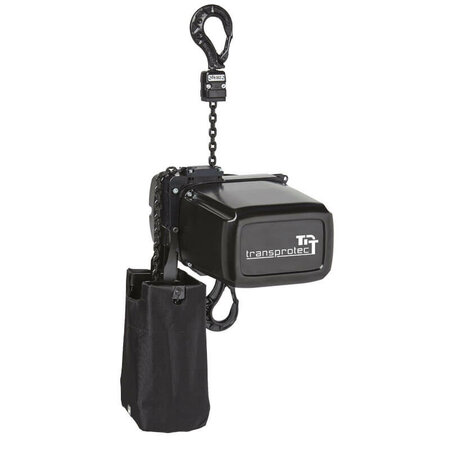

Electric chain hoist for stage technology BGV-D8 Plus

Traglast: 125 kg - 2.000 kg

BGV-D8 Plus electric chain hoists can be supplied as stationary chain hoists or climbing hoists for 230 V, 400 V or even 480 V. BGV-D8 Plus chain hoists are permitted to be used by persons as long as the load is at a standstill. The devices are therefore primarily used in scenic operations such as film and theater productions, by trade fair equipment suppliers or in shopping malls and churches. In contrast to the hoists of the BGV D8 standard, the electric chain hoists of this standard have a second brake.

Request now!

Technical features:

Load capacity: 125 kg to 2000 kg (1 fall)
Standard voltages: 3 x 400 V / 50 Hz, 3 x 230 V / 50 Hz,
3 x 480 V / 50 Hz
Terminal board for direct control
1 or 2 speeds
Eyelet suspension
Stationary or as a climbing hoist
Protection class IP 65
Insulation class F (motor)
Two independent DC spring-applied brakes
Slipping clutch not in the power flow
Chain guide plate as additional chain guide
Lifting straps or lifting handles

We offer periodic inspections (UVV) for your electric chain hoist.

We can create a customized electric chain hoist for you on request.

Please use the comment function in the price inquiry for an individual lifting height and control cable extension. We will be happy to advise you by telephone on 04102 7789-600

DC spring-applied brake

The load is braked safely thanks to the spring-applied brake with minimal overrun. The brake system is easy to maintain and impresses with its reliability.
