transprotec  >  Chain hoists  >  Electric chain hoists  >  Special electric chain hoists  >  Electric chain hoist EX protection

Electric chain hoist EX protection

up to 5,000 kg load capacity, with contactor control, for Ex zone II 3D Ex tc IIA T130 °C Db

Electric chain hoists from the T-GCH-EX series, with load capacities of up to 5,000 kg, are suitable for use in Ex zone II 3D Ex tc IIA T130 °C Db . Each electric chain hoist for hazardous areas is equipped with a contactor control. The devices are available in a 400 V version and have a limit switch for the upper and lower hook end position.

We can create a customized electric chain hoist for you on request.
Please use the comment function in the price inquiry for an individual lifting height and control cable extension. We will be happy to advise you by telephone on +494102 7789-600

elektrokettenzug-ex-schutz-atex
Request now!

Technical features:

  • Stroke 3 m (standard)
  • Control panel with 1.8 m control cable
  • Overload protection with slipping clutch
  • Eyelet suspension
  • Galvanized load chain according to DIN EN 818-7-T
  • Design according to ISO (FEM)
  • Operating voltage 3 / 400 Volt / 50 Hz 42 Volt
  • Contactor control
  • Protection class IP 65
  • Insulation class F
  • Certified according to DIN EN ISO 9001 : 2008
  • Incl. test book in accordance with CE and UVV regulations
  • Gear limit switch for upper and lower hook limit position
  • Compact design with low hook dimension
  • For dust Ex zone || 3D Ex tc ||A T130 °C Db

Load capacity: 5,000 kg
Voltage: 400 Volt
Control: Contactor control

ex-sign

We offer periodic inspections (UVV) for your electric chain hoist.

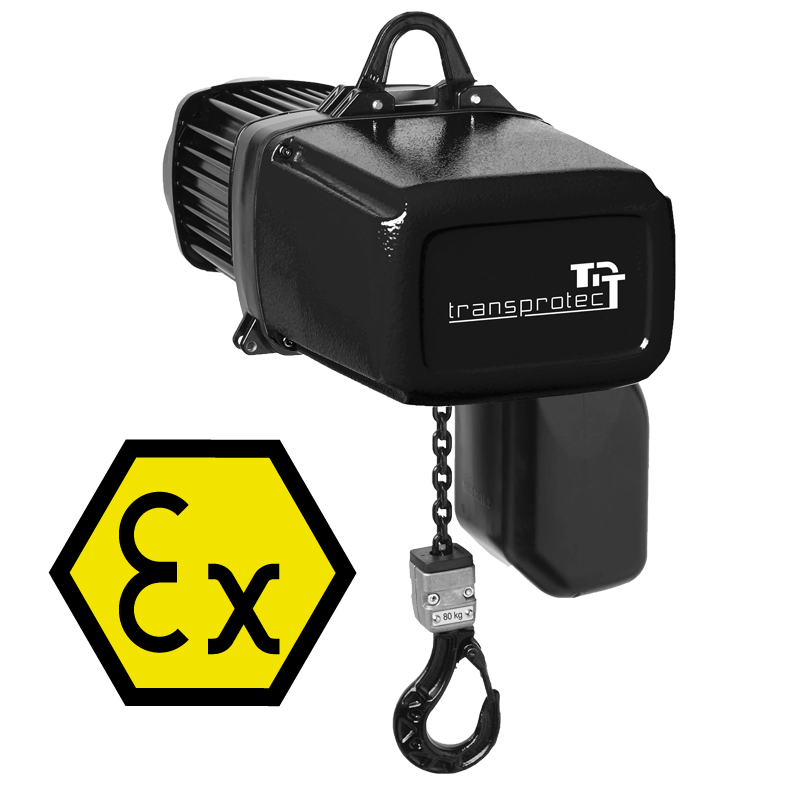

elektrokettenzug-ex-schutz-atex-2

Ask for a non-binding offer

You have questions about our products or would like a quote for a specific product? Receive your personal offer quickly and directly.

Request price now
