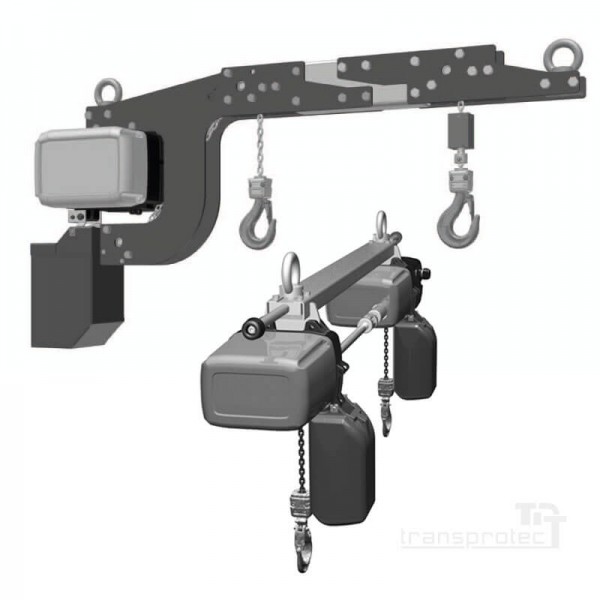

Electric chain hoist as synchronous chain hoist, precise parallel operation

Load capacity up to 3,200 kg

This type of electric chain hoist is equipped as standard with a 42 volt contactor control, a 3 m stroke and a metal housing. This chain hoist can be supplied with either electric or roller trolley. There is also a choice between eye and hook suspension. If you require more than 3 m of chain or a special electric chain hoist, e.g. for hazardous areas or stage technology, our specialist advisors will be happy to provide you with a personal consultation or send you an e-mail.

The T-ECHR electric chain hoist is particularly suitable for

Food industry
pharmaceutical industry
chemical industry
waste water treatment plants
outdoor use in general

elektrokettenzug-synchron-kettenzug-vorschau

Request now!

Options:

Load capacity: 2 x 500 kg up to 2 x 1,600 kg
3 Ph / 400 V - 50 Hz
designed for optimized handling
Optionally infinitely variable by means of FU control
Precise synchronous operation of 2 load hooks
Can be equipped with rolling trolley or electric trolley
42 V contactor control
with gear limit switch for individually adjustable hook height

We offer periodic inspections (UVV) for your electric chain hoist.

We can create a customized electric chain hoist for you on request.
Please use the comment function in the price inquiry for an individual lifting height and control cable extension. We will be happy to advise you by telephone on +494102 7789-600

Type	Load capacity (kg)	Lifting speed (m/min)	Cords	Chain-Size (mm)	Motor-Power (kw)	3 x 400 V / 50 Hz	Weight with 2m Hub (kg)
	M5 (2m)
T-ECHS 2000 / 1N	2 x 800	8 / 2	1	7 x 22	3,05/0,77	8,0/4,5	52
T-ECHS 2000 / 1SF	2 x 500	12,5 / 3	1	7 x 22	3,05/0,77	8,0/4,5	52
T-ECHS 2000 / 2NF	2 x 1600	4 / 1	2	7 x 22	3,05/0,77	8,0/4,5	53
T-ECHS 2000 / 2SF	2 x 1000	6,25 / 1,5	2	7 x 22	3,05/0,77	8,0/4,5	53
