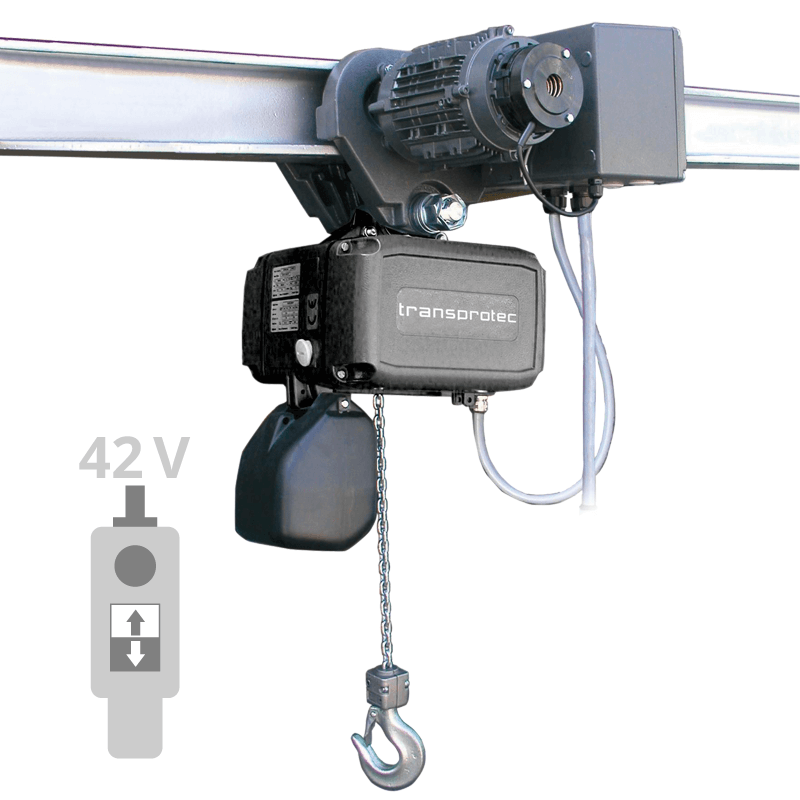

This type of electric chain hoist is equipped as standard with a 42 volt contactor control, a 3 m stroke and a metal housing. This chain hoist can be supplied with either electric or roller trolley. There is also a choice between eye and hook suspension. If you require more than 3 m of chain or a special electric chain hoist, e.g. for hazardous areas or stage technology, our specialist advisors will be happy to provide you with a personal consultation on +49 40 / 87 08 59 78 0 or by email at info@transprotec.de.
We offer periodic inspections (UVV) for your electric chain hoist.
We can create a customized electric chain hoist for you on request.
Use the comment function in the price inquiry for a customized lifting height and control cable extension. We will be happy to advise you by telephone on +494102 7789-600
| Typ | Tragfähigkeit (kg) | Hubgeschwindigkeit (m/min) | Strangzahl | Kettengröße (mm) | Motorleistung (kw) | 3 x 400 V / 50 Hz (A) | Gewicht mit 3m Hub (kg) | Flaschbreiten (Größe) N - Standard (mm) | Rollfahrwerk Typ |
| M3 (1Bm) | |||||||||
| T-GCH 1600/1NE | 1.600 | 8 | 1 | 9 x 27 | 2,44 | 6 | 63 | 76 - 139 | EMF 150 |
| T-GCH 1600/1NFE | 1.600 | 8 / 2 | 1 | 9 x 27 | 2,44 / 0,61 | 6,6 / 4,2 | 65 | 76 - 139 | EMF 150 |
| T-GCH 1600/1SFE | 1.000 | 12,5 / 3 | 1 | 9 x 27 | 2,44 / 0,58 | 6,6 / ,2 | 65 | 76 - 139 | EMF 150 |
| T-GCH 1600/2NE | 3.200 | 4 | 2 | 9 x 27 | 2,44 | 6 | 73 | 120 - 179 | EMF 300 |
| T-GCH 1600/2NFE | 3.200 | 4/ 1 | 2 | 9 x 27 | 2,44 / 0,61 | 6,6 / 4,2 | 75 | 120 - 179 | EMF 300 |
| T-GCH 1600/2SFE | 2.000 | 6,25 / 1,5 | 2 | 9 x 27 | 2,44 / 0,85 | 6,6 / 4,2 | 75 | 120 - 179 | EMF 300 |
| T-GCH 2000/1NE | 2.000 | 8 | 1 | 10 x 28 | 3,05 | 7,3 | 65 | 120 - 179 | EMF 300 |
| T-GCH 2000/1NFE | 2.000 | 8 / 2 | 1 | 10 x 28 | 3,05 / 0,77 | 8,0 / 4,5 | 67 | 120 - 179 | EMF 300 |
| T-GCH 2000/1SFE | 1.250 | 12,5 / 3 | 1 | 10 x 28 | 2,98 / 0,72 | 8,0 / 4,5 | 67 | 76 - 139 | EMF 150 |
| T-GCH 2000/2NE | 4.000 | 4 | 2 | 10 x 28 | 3,05 | 7,9 | 76 | 120 - 179 | EMF 300 |
| T-GCH 2000/2NFE | 4.000 | 4/ 1 | 2 | 10 x 28 | 3,05 / 0,77 | 8,0 / 4,5 | 78 | 120 - 179 | EMF 300 |
| T-GCH 2000/2SFE | 2.500 | 6,25 / 1,5 | 2 | 10 x 28 | 2,98 / 0,2 | 8,0 / 4,5 | 78 | 120 - 179 | EMF 300 |
| T-GCH 2500/1NE | 2.500 | 6,4 | 1 | 10 x 28 | 3,05 | 7,7 | 65 | 120 - 179 | EMF 300 |
| T-GCH 2500/1NFE | 2.500 | 6,5 / 1,6 | 1 | 10 x 28 | 3,05 / 0,77 | 8,2 / 4,4 | 67 | 120 - 179 | EMF 300 |
| T-GCH 2500/1SFE | 1.600 | 10 / 2,5 | 1 | 10 x 28 | 3,05 / 0,77 | 8,2 / 4,4 | 67 | 76 - 139 | EMF 150 |
| T-GCH 2500/2NE | 5.000 | 3,2 | 2 | 10 x 28 | 3,05 | 7,7 | 76 | 120 - 179 | EMF 500 |
| T-GCH 2500/2NFE | 5.000 | 3,2 / 0,8 | 2 | 10 x 28 | 3,05 / 0,77 | 8,2 / 4,4 | 78 | 120 - 179 | EMF 500 |
| T-GCH 2500/2SFE | 3.200 | 5 / 1,25 | 2 | 10 x 28 | 3,05 / 0,77 | 8,2 / 4,4 | 78 | 120 - 179 | EMF 300 |
Tragfähigkeit: 5.000 kg
Aufhängung / Fahrwerk: Elektrofahrwerk
Spannung: 400 Volt
Steuerung: Schützsteuerung
