Elektrokettenzug T-ECH mit Schützsteuerung (IP65) - Elektrofahrwerk

Traglast bis 2.000 kg, 42-V-Steuerung mit Elektro-Laufkatze

This type of electric chain hoist is equipped as standard with a 42 volt contactor control, a 3 m stroke and a metal housing. This chain hoist can be supplied with either electric or roller trolley. There is also a choice between eye and hook suspension. If you require more than 3 m of chain or a special electric chain hoist, e.g. for hazardous areas or stage technology, our specialist advisors will be happy to provide you with a personal consultation on +49 40 / 87 08 59 78 0 or by email at info@transprotec.de.

We offer periodic inspections (UVV) for your electric chain hoist.

We can create a customized electric chain hoist for you on request.
Use the comment function in the price inquiry for a customized lifting height and control cable extension.We will be happy to advise you by telephone on +494102 7789-600

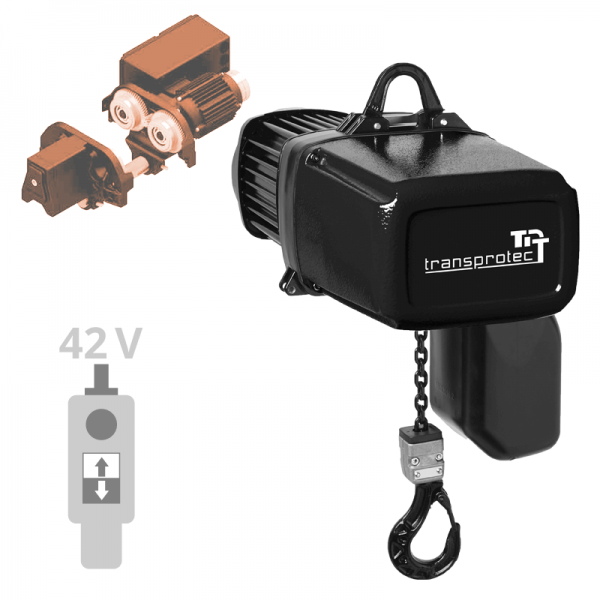

elektrokettenzug-t-ech-ip65-emf-400v_600x600

Request now!

Type	Load capacity (kg)	Lifting speed (m/min)	Cords	Chain size (mm)	Motor power (kw)	3 x 400 V / 50 Hz (A)	Weight mit 3m Hub (kg)	Bottle widths (size) N - Standard (mm)	Rolling chassis Typ
	M5 (2m)
T-ECHM 250 / 1SFE	125	16/4	1	3,75 x 10,75	0,72 / 0,18	2,8 / 1,7	24	50 - 99	EMF50
T-ECHM 250 / 1NFE	250	8/4	1	3,75 x 10,75	0,72	2,8	24	50 - 99	EMF50
T-ECH 250 / 1NE	250	8	1	3,75 x 10,75	0,72 / 0,18	2,8 / 1,7	24	50 - 99	EMF50
T-ECH 250 / 1NFE	250	8	1	3,75 x 10,75	0,72 / 0,18	2,8 / 1,7	24	50 - 99	EMF50
T-ECH 250 / 1SFE	125	16/4	1	3,75 x 10,75	0,72	2,8	24	50 - 99	EMF50
T-ECH 250 / 2NE	500	4	2	3,75 x 10,75	0,72	2,8	25	50 - 99	EMF50
T-ECH 250 / 2NFE	500	4/1	2	3,75 x 10,75	0,72 / 0,18	2,8 / 1,7	25	50 - 99	EMF50
T-ECH 500 / 1NE	500	8	1	5,25 x 15	0,72	2,8	26	50 - 99	EMF50
T-ECH 500 / 1NFE	500	8/2	1	5,25 x 15	0,72 / 0,18	2,8 / 1,7	26	50 - 99	EMF50
T-ECH 500 / 1SFE	250	16/4	1	5,25 x 15	0,72 / 0,18	2,8 / 1,7	26	76 - 139	EMF50
T-ECH 500 / 2NE	1.000	4	2	5,25 x 15	0,72	2,8	26	76 - 139	EMF 150
T-ECH 500 / 2NFE	1.000	4/1	2	5,25 x 15	0,72 / 0,18	2,8 / 1,7	26	76 - 139	EMF 150
T-ECH 1000 / 1NFE	1.000	8/2	1	7,45 x 23	2,3 / 0,68	2,3 / 0,68	58	76 - 139	EMF 150
T-ECH 1000 / 1SFE	500	16/4	1	7,45 x 23	2,3 / 0,68	2,3 /0,68	58	50 - 99	EMF 50
T-ECH 1000 / 1NE	1.000	8	1	7,45 x 23	2,3	2,3	57	76 - 139	EMF 150
T-ECH 1000 / 1NLE	1.000	4	1	7,45 x 23	1,5	2,3	62	76 - 139	EMF 150
T-ECH 1000 / 2NFE	2.000	4/1	2	7,45 x 23	2,3 / 0,68	5,7 / 4,1	62	120 - 179	EMF 300
T-ECH 1000 / 2NE	2.000	4	2	7,45 x 23	2,3	6,5	61	120 - 179	EMF 300
T-ECH 1000 / 2NLE	2.000	2	2	7,45 x 23	1,45	6,5	66	120 - 179	EMF 300
