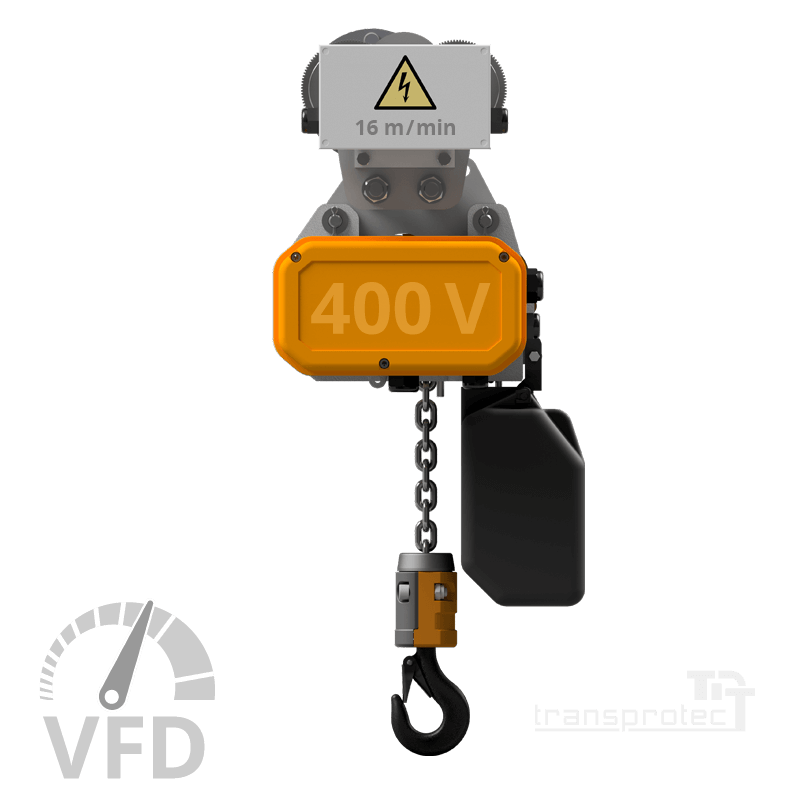

Electric chain hoist with frequency converter control - 400 V
Electric trolley load capacity up to 2,000 kg, infinitely variable speed control with electric trolley
Options:
- Load capacity: 125 kg - 2000 kg
- Electric trolley
- 3 Ph / 380 -480 V 50/60 Hz b. 24 V DC - Optional: 3 Ph / 220 - 240 V 50/60 Hz
- Protection class IP55
- High-end FU control for hoist up to 24 m/min (RS Reduce Speed)
- with electric limit switches for lifting and lowering
- with load control
- with external display
- with temperature monitor for hoist motor and electronics
- with standard control cable length: 1.5 m
- with standard lifting height 3 m
- "MADE IN GERMANY
- Delivery time: approx. 6 weeks
We offer periodic inspections (UVV) for your electric chain hoist.
We can create a customized electric chain hoist for you on request.
Use the comment function in the price inquiry for a customized lifting height and control cable extension. We will be happy to advise you by telephone on +494102 7789-600
Name | Load capacity (kg) | ISO | Chain (mm) | Lifting speed (m/min) | Cords |
St. VFD…. 3-phasig |
|
|
|
|
|
125/1 - 12.Ö.3 -phasig | 125 | M6 | 7,2x21 | 2 - 24 | 1 |
250/1-12.Ö.3-phasig | 250 | M6 | 7,2x21 | 2 - 24 | 1 |
500/1-8.Ö.3-phasig | 500 | M6 | 7,2x21 | 1 - 16 | 1 |
1000/1-6.Ö.3-phasig | 1000 | M5 | 7,2x21 | 1 - 12 | 1 |
2000/2-3.Ö.3-phasig | 2000 | M5 | 7,2x21 | 0,5 - 6 | 2 |
Hinweis: Zwischenlasten auf Anfrage möglich - Kettenzug wird individuell eingestellt, gekennzeichnet und dokumentiert.
Tragfähigkeit: 2.000 kg
Aufhängung / Fahrwerk: Elektrofahrwerk
Spannung: 400 Volt
Steuerung: FU-Steuerung
