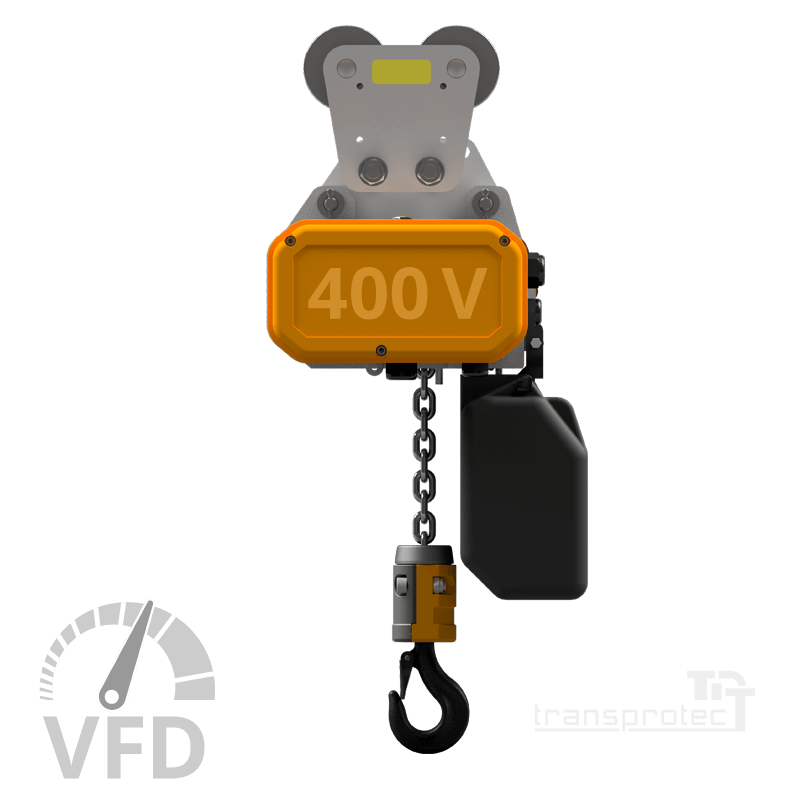

Electric chain hoist with frequency inverter control - 400 V and rolling trolley
Load capacity up to 2,000 kg, infinitely variable speed control with trolley
Options:
- Load capacity: 125 kg - 2000 kg
- Rolling trolley
- 3 Ph / 380 - 480 V 50/60 Hz b. 24 V DC - Optional: 3 Ph / 220 - 240 V 50/60 Hz
- Protection class IP55
- High-end FU control for hoist up to 24 m/min (RS Reduce Speed)
- with electric limit switches for lifting and lowering
- with load control
- with external display
- with temperature monitor for hoist motor and electronics
- with standard control cable length: 1.5 m
- with standard lifting height 3 m
- "MADE IN GERMANY
- Delivery time: approx. 6 weeks
We offer periodic inspections (UVV) for your electric chain hoist.
We can create a customized electric chain hoist for you on request.
Use the comment function in the price inquiry for a customized lifting height and control cable extension. We will be happy to advise you by telephone on +494102 7789-600
Name | Load capacity (kg) | ISO | Chain (mm) | Lifting speed (m/min) | Cords |
St. VFD…. 3-phasig |
|
|
|
|
|
| 125/1 - 12.Ö.3 -phasig | 125 | M6 | 7,2x21 | 2 - 24 | 1 |
| 250/1-12.Ö.3-phasig | 250 | M6 | 7,2x21 | 2 - 24 | 1 |
| 500/1-8.Ö.3-phasig | 500 | M6 | 7,2x21 | 1 - 16 | 1 |
| 1000/1-6.Ö.3-phasig | 1000 | M5 | 7,2x21 | 1 - 12 | 1 |
| 2000/2-3.Ö.3-phasig | 2000 | M5 | 7,2x21 | 0,5 - 6 | 2 |
Note: Intermediate loads possible on request - Chain hoist is individually adjusted, marked and documented
Load capacity: 2,000 k
Suspension / Chassis: Rolling chassis
Voltage: 400 Vol
Control: FU control
