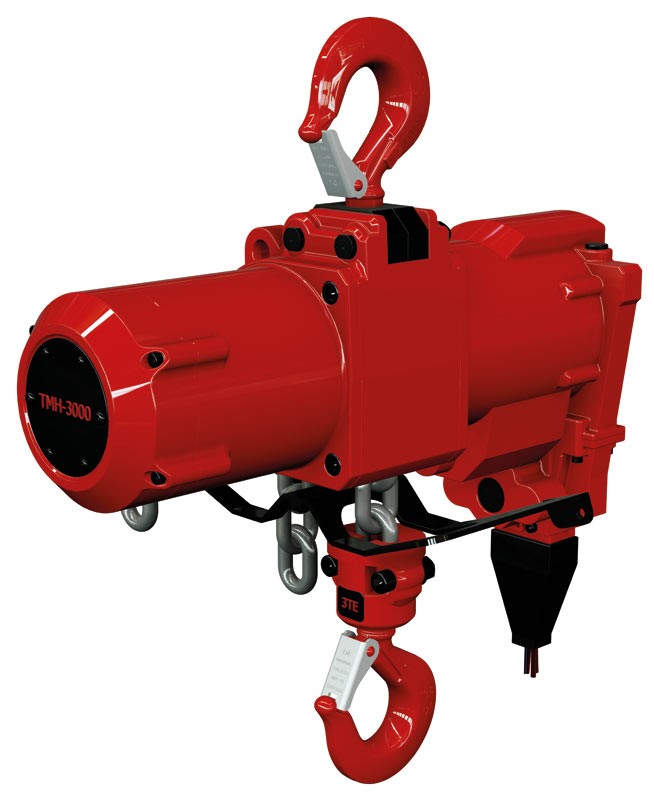

Pneumatic chain hoist TMH

Maximum speed with minimum installation height - up to 6 t load capacity

The new TMH air chain hoist has the highest lifting speed with the lowest installation height on the market. With the TMH you get a durable hoist that guarantees the continuity of your work. This air chain hoist is designed with an eyelet on the housing for easy mounting and to secure the hoist for extra safety (during work).

Technical features:

  • Very precise stepless speed control
  • Optimum load control
  • Precise positioning of the load
  • Soundproofed
  • With overload protection without loss of height
  • Air pressure 4 - 6.3 bar

The TMH is available with rope control (C) and pressure control (P) with EMERGENCY STOP.

Type3000C / 3000PE6000C / 6000PE
Load capacity (t)36
Lifting speed at full load (m/min)5,42,7
Lowering speed at full load (m/min) 5,1
Lifting speed without load (m/min)10,85,4
Air consumption at full load (l/sec)5656
Number of chain strands12
Air connection3/4“ BSPT3/4“ BSPT
Hose Ø (DIN 2999) (mm)3/4“3/4“
Weight with standard stroke (kg)99124
Chain dimension (mm)13 x 3613 x 36
Weight per meter of additional stroke (kg/m)3,87,6

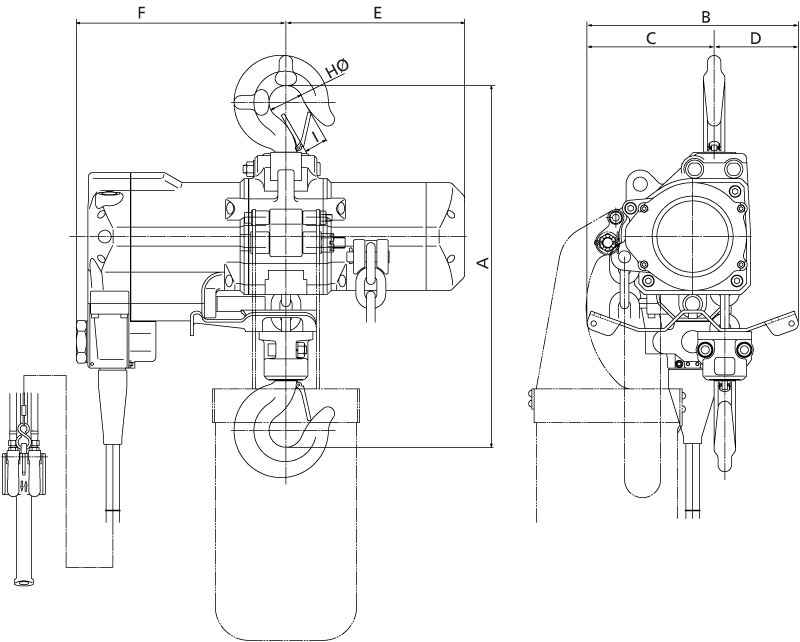

Dimensions air chain hoist TMH

Dimensions

A

B

C

D

E

F

I



mm

3000C / 3000PE

890

467

154

279

313

247

60

40

6000C / 6000PE

1100

676

217

469

312

248

84

84
