Compact chain hoist

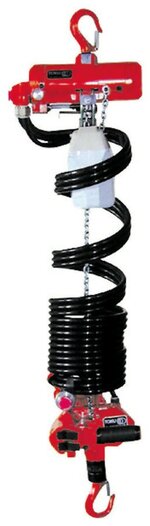

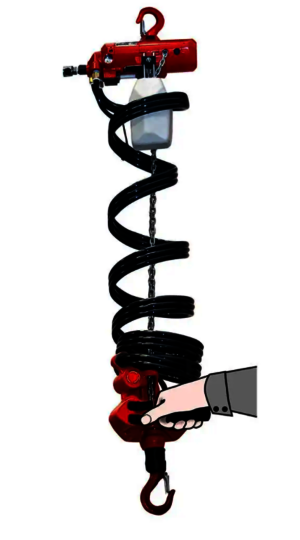

The TCR-250ME compact chain hoist with a load capacity of up to 250 kg is particularly suitable for material handling. As with the pneumatic wire rope hoists, the push-button control on this device is also located on the lower hook. This allows the operator to control the load directly and position it precisely.
Technical features:
| Type | TCR-250ME |
| Load capacity (t) | 0,25 |
| Lifting speed at full load (m/min) | 8 |
| Lowering speed at full load (m/min) | 16 |
| Lifting speed without load (m/min) | 19 |
| Lowering speed without load (m/min) | 13 |
| Number of chain strands | 1 |
| Air consumption at full load (l/s) | 11,7 |
| Air connection | PT 3/8“ |
| Hose diameter (mm) | 13 |
| Weight with 3 m stroke (kg) | 11 |
| Chain dimension (mm) | 4 x 12 (HD) |
| Chain weight (kg/m) | 0,35 |
