Low-Headroom Hoists
Compressed air hoists for low spaces and confined conditions - 0.5 to 20 t load capacity
Der neue TMH-Druckluftkettenzug hat die größte Hubgeschwindigkeit mit kleinster Einbauhöhe auf dem Markt. Mit dem TMH bekommen Sie ein langlebiges Hebezeug, was die Kontinuität Ihrer Arbeit garantiert. Dieser Druckluftkettenzug ist mit einer Befestigungsöse am Gehäuse für eine einfache Montage und zwecks Befestigung des Hebezeugs zur zusätzlichen Sicherheit (während der Arbeiten) entworfen.
Technische Eigenschaften:
- Sehr genaue stufenlose Geschwindigkeitsregelung
- Optimale LastkontrolleThe new TMH air chain hoist has the highest lifting speed with the lowest installation height on the market. With the TMH you get a durable hoist that guarantees the continuity of your work. This air chain hoist is designed with an eyelet on the housing for easy mounting and to secure the hoist for extra safety (during work).
- Technical features:
- Very precise stepless speed control
- Optimum load control
- Precise positioning of the load
- Soundproofed
- With overload protection without loss of height
- Air pressure 4 - 6.3 bar
- The TMH is available with rope control (C) and pressure control (P) with EMERGENCY STOP.
- Genaue Positionierung der Last
- Schallgedämpft
- Mit Überlastsicherung ohne Bauhöhenverlust
- Luftdruck 4 - 6,3 bar
Der TMH ist mit Seilsteuerung (C) und Druckttensteuerung (P) mit NOT-AUS lieferbar.
Optional:
- Explosion-proof version with bronze-plated impellers and bronze-coated load hook
- Rack and pinion drive
- Marine paint finish
- Compressed air hoists suitable for curves
- Trolleys with beam brake
Flat lifting gear 0.5 t to 12 t
| Type TCR- | 500-LHR | 1000/2-LHR | 1000- LHR | 2000- LHR | 3000- LHR | 6000- LHR | 12000-LHR |
| Load capacity (t) | 0,5 | 1 | 1 | 2 | 3 | 6 | 12 |
| Lifting speed at full load (m/min) | 10,5 | 5,3 | 6 | 3 | 2,8 | 1,4 | 0,6 |
| Lifting speed without load (m/min) | 16 | 9,5 | 11,3 | 5,7 | 5,7 | 2,9 | 1,4 |
| Lifting speed without load (m/min) | 17,9 | 9 | 10,3 | 5,2 | 4,6 | 2,3 | 1,1 |
| Travel speed (m/min) | 9 | 9 | 9 | 9 | 6 | 6 | 8 |
| Number of chain strands | 1 | 2 | 1 | 2 | 1 | 2 | 4 |
| Chain size (mm) | 6,3 x 19,1 | 6,3 x 19,1 | 7,1 x 21 | 7,1 x 21 | 11,2 x 34 | 11,2 x 34 | 11,2 x 34 |
| Air consumption of the hoist (l/sec) | 25 | 25 | 25 | 25 | 33 | 33 | 33 |
| Air consumption of the trolley (l/sec) | 25 | 25 | 25 | 25 | 25 | 25 | 50 |
| Air connection | 1/2“ | 1/2“ | 1/2“ | 1/2“ | 3/4“ | 3/4“ | 1“ |
| Weight with standard stroke (kg) | 85 | 90 | 90 | 105 | 295 | 310 | 400 |
| Weight per meter of additional stroke (kg/m) | 0,8 | 1,6 | 1,1 | 2,2 | 2,7 | 5,4 | 10,8 |
| Minimum flange dimension (mm) | 60 | 60 | 60 | 60 | 110 | 110 | 110 |
| Maximum flange dimension (mm) | 300 | 300 | 300 | 300 | 300 | 300 | 300 |

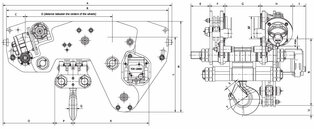

| Dimensions | A | B | C | D | E | F | G | HØ | I | J | K |
mm | |||||||||||
| TCR-500-LHR | 570 | 520 | 115 | 340 | 21 | TBC | 135 | 70 | 30 | 480 | 590 |
| TCR-1000/2-LHR | 570 | 520 | 115 | 340 | 21 | TBC | 135 | 70 | 30 | 480 | 590 |
| TCR-1000-LHR | 570 | 520 | 115 | 340 | 21 | TBC | 135 | 70 | 30 | 480 | 590 |
| TCR-2000-LHR | 570 | 520 | 115 | 340 | 21 | TBC | 135 | 70 | 30 | 480 | 590 |
| TCR-3000-LHR | 880 | 830 | 132,5 | 565 | 33 | TBC | 115 | 150 | 35 | 675 | 790 |
| TCR-6000-LHR | 880 | 830 | 132,5 | 565 | 33 | TBC | 115 | 150 | 35 | 675 | 790 |
| TCR-12000-LHR | 1050 | 1000 | 132,5 | 735 | 33 | TBC | 185 | 150 | 50 | 695 | 810 |
Dimensions | L | M | N | O | P | Q | RØ | S | T | U |
mm | ||||||||||
| TCR-500-LHR | 340 | 180 | 25 | 20 | 295 | 30 | 40 | 186 | 156 | 30 |
| TCR-1000/2-LHR | 375 | 135 | 25 | 42 | 320 | 30 | 40 | 186 | 156 | 30 |
| TCR-1000-LHR | 340 | 180 | 25 | 20 | 296 | 29 | 40 | 177 | 157 | 30 |
| TCR-2000-LHR | 390 | 125 | 30 | 53 | 320 | 28 | 40 | 175 | 160 | 40 |
| TCR-3000-LHR | 400 | 215 | 37 | 38,5 | 480 | 37 | 50 | 202 | 230 | 47 |
| TCR-6000-LHR | 495 | 138 | 37 | 72 | 525 | 43 | 62 | 202 | 230 | 49 |
| TCR-12000-LHR | 600 | 95 | 52 | 200 | 605 | 58 | 84 | 202 | 230 | 67 |
Flat hoists 10 t to 20 t
| Type | TNC-10/2-LHR | TCR-12/4-LHR | TNC-15/3-LHR | TNC-20/4-LHR |
| Load capacity (t) | 10 | 12 | 15 | 20 |
| Lifting speed at full load (m/min) | 1,3 | 0,6 | 1 | 0,75 |
| Lifting speed without load (m/min) | 2,5 | 1,4 | 1,6 | 1,25 |
| Lowering speed (m/min) | 2,3 | 1,1 | 1,25 | 1,15 |
| Travel speed (m/min) | 9 | 9 | 8 | 6 |
| Number of chain strands | 2 | 4 | 3 | 4 |
| Chain size (mm) | 16 x 45 | 11,2 x34 | 16 x 45 | 16 x 45 |
| Air consumption of the hoist (l/sec) | 90 | 33 | 90 | 90 |
| Air consumption of the trolley(l/sec) | 50 | 50 | 100 | 100 |
| Air connection | 1“ | 1“ | 1“ | 1“ |
| Weight with standard stroke (kg) | 550 | 435 | 700 | 890 |
| Weight per meter of additional stroke (kg/m) | 11,4 | 10,8 | 17,1 | 22,8 |
| Minimum flange dimension (mm) | 110 | 110 | 175 | 175 |
| Maximum flange dimension (mm) | 300 | 300 | 300 | 300 |
TCR- | A | B | C | D | E | F | G | HØ | I | J | K |
mm | |||||||||||
| TCR-6000-ULHR | 1115 | 1065 | 132,5 | 535 | 128 | 103 | TBC | 150 | 160 | 150 | 50 |
| TCR-12000-ULHR | 1200 | 1150 | 132,5 | 620 | 128 | 103 | TBC | 220 | 90 | 150 | 50 |
| TNC-20000-ULHR | 1620 | 1570 | 200 | 890 | 185 | 158 | TBC | 265 | 145 | 225 | 50 |
TCR- | L | M | N | O | P | Q | RØ | S | T | U |
mm | ||||||||||
| TCR-6000-ULHR | 530 | 645 | 355 | 347,5 | 107,5 | 37 | 500 | 43 | 62 | 49 |
| TCR-12000-ULHR | 530 | 645 | 400 | 367,5 | 130 | 52 | 540 | 58 | 84 | 67 |
| TNC-20000-ULHR | 780 | 950 | 500 | 550 | 165 | 64 | 915 | 78 | 110 | 80 |
