transprotec  >  Energy supplies  >  Cable reels  >  Cable reel 11662 and 11663

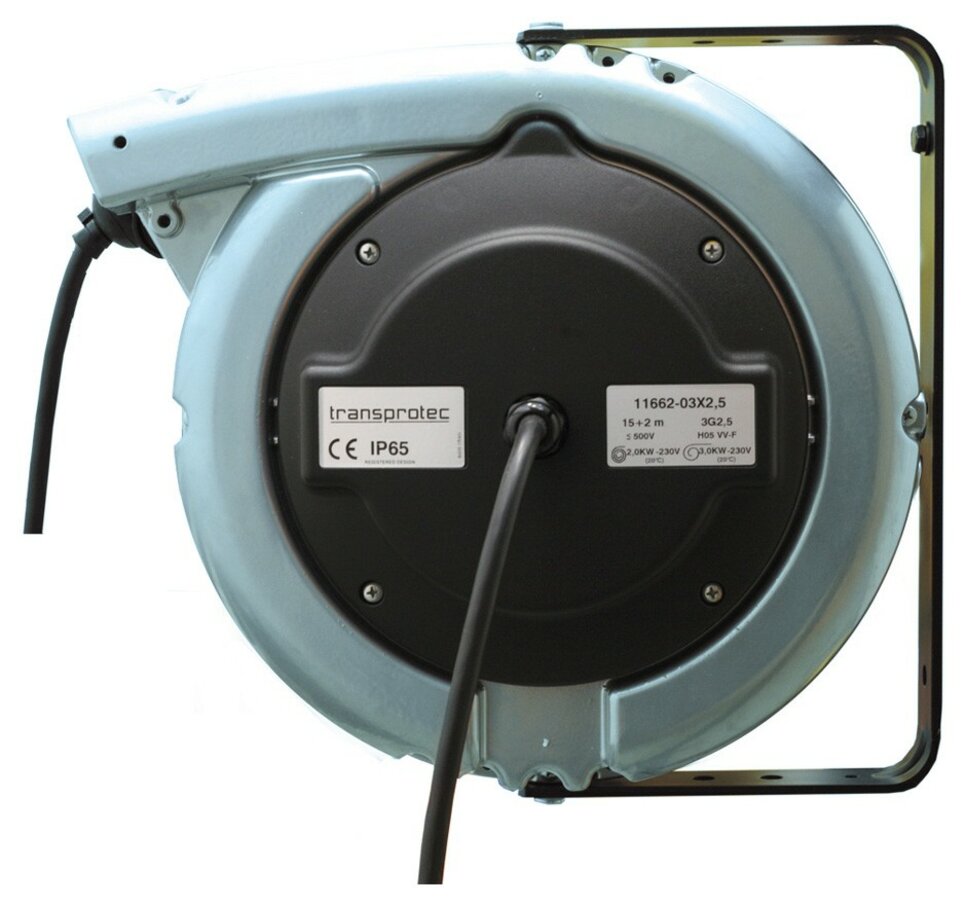

Cable reel 11662 / 11663

IP 65, aluminum housing, up to 8 conductors

01_leitungsaufroller_116625KnrnGqe9IOpe
Request now!
  • Aluminum housing
  • Cable guide opening with rollers
  • Cable rewind lock with toothed lock, every 50 cm, easy to disengage if the cable is to be subject to continuous tensile force
  • Cable reels in this series are supplied with the cable return lock switched off. The return lock can be easily activated.
  • Double earthing contacts
  • Slip ring body consists of brass rings and current collectors
  • Insulation voltage of the slip ring body: 2.5 kV
  • Protection class: IP 65
  • Ambient temperature: -5°C to +40°C
  • Scope of delivery with connection cable on the supply side
  • Cable: H05 VV-F in accordance with CEI 20-35 standards or rubber hose cable H07 RN-F
  • Single-pole cables: Yellow / green, H05 V-F

Suspension:

  • Wall and ceiling mounting
  • pivotable
02_leitungsaufroller_11662
03_leitungsaufroller_11662_63
Item no. Winding length (m) Number of cores/cross-section (mm²) Volt Cable rolled up (W) Cable uncoiled (W) Weight (kg)
11662(..63)-01x6,0 22 1x6,0   / / 14
11662(..63)-01x16,0 15 1x16   / / 14
11662(..63)-02x1,5 24 2x1,5 230 1100 1800 14
11662(..63)-02x2,5 21 2x2,5 230 1800 2500 14
11662(..63)-03x1,5 24 3x1,5 230 1100 1800 14
11662(..63)-03x1,5RNF 20 3x1,5 230 1100 1800 14
11662(..63)-03x2,5 15 3x2,5 230 2000 3000 14
11662(..63)-03x2,5RNF 12 3x2,5 230 2000 3000 14
11662(..63)-04x1,5 21 4x1,5 400 1100 1800 14
11662(..63)-04x1,5RNF 16 4x1,5 400 1100 1800 14
11662(..63)-04x2,5 15 4x2,5 400 2000 3000 14
11662(..63)-04x2,5RNF 10 4x2,5 400 2000 3000 14
11662(..63)-05x1,5 15 5x1,5 400 1500 2200 14
11662(..63)-05x2,5 10 5x2,5 400 2000 3000 14
11662(..63)-05x2,5RNF 8 5x2,5 400 2000 3000 14
11662(..63)-07x1,0 16 7x1,0   3A 3A 14
11662(..63)-07x1,5 9 7x1,5   4,5A 4,5A 14
11662(..63)-08x1,0 11 8x1,0   3A 3A 14
11662(..63)-08x1,5 8 8x1,5   4,5A 4,5A 14

11663
Protection class IP 43, with additional mouthpiece for improved cable routing and higher protection class
