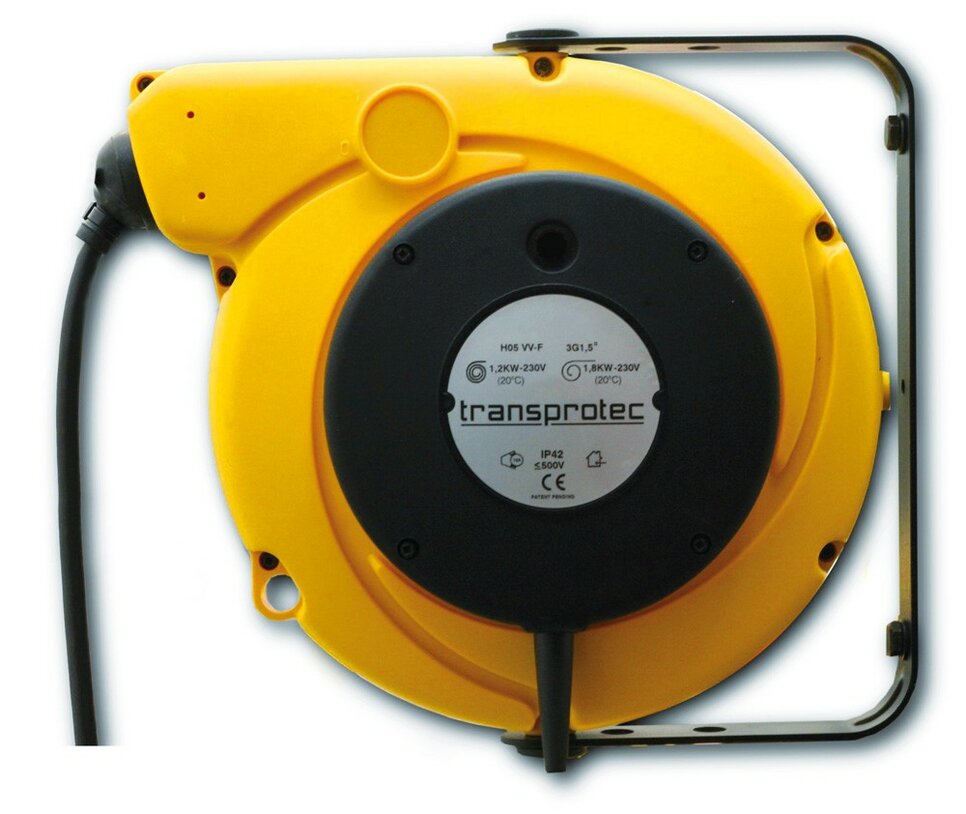

Cable reel 11658 / 11659
IP 42, plastic housing, up to 8 cores
Technical characteristics
- Sturdy plastic housing: yellow, black
- Voltage: max. 230V Cable return stop with tooth lock, every 50 cm, can be easily switched off if the cable is to be subject to continuous tensile force
- Double earthing contact
- Protection class: IP 42
- Ambient temperature: -5°C to +40°C
- Cable: H05VV-F, in accordance with CEI 20-35 standards, supplied without connection cable on the supply side
- Single-pole cables: Yellow / green, H05 V-F
Suspension:
- Wall and ceiling mounting
- pivotable
| Item no. | Winding length (m) | Number of cores/cross-section (mm²) | Volts | Cable rolled up (W) | Cable uncoiled (W) | Weight (kg) |
| 11658(..59)-01x2,5 | 15,0 | 1x2,5 | / | / | 4,0 | |
| 11658(..59)-01x6,0 | 12,5 | 1x6 | / | / | 4,0 | |
| 11658(..59)-01x16,0 | 8,5 | 1x16 | / | / | 4,0 | |
| 11658(..59)-02x1,0 | 14,0 | 2x1 | 230 | 900 | 1400 | 4,0 |
| 11658(..59)-02x1,0RNF | 10,0 | 2x1 | 230 | 900 | 1400 | 4,0 |
| 11658(..59)-02x1,5 | 11,0 | 2x1,5 | 230 | 1100 | 1600 | 4,0 |
| 11658(..59)-02x2,5 | 8,5 | 2x2,5 | 230 | 1750 | 2300 | 4,0 |
| 11658(..59)-03x1,0 | 12,5 | 3x1 | 230 | 900 | 1400 | 4,0 |
| 11658(..59)-03x1,0RNF | 8,0 | 3x1 | 230 | 900 | 1400 | 4,0 |
| 11658(..59)-03x1,5 | 10,0 | 3x1,5 | 230 | 1200 | 1800 | 4,0 |
| 11658(..59)-03x1,5RNF | 7,0 | 3x1,5 | 230 | 1200 | 1800 | 4,0 |
| 11658(..59)-03x2,5 | 7,0 | 3x2,5 | 230 | 1850 | 2500 | 4,0 |
| 11658(..59)-04x1,0 | 10,5 | 4x1 | 400 | 1100 | 1600 | 4,5 |
| 11658(..59)-04x1,5 | 8,0 | 4x1,5 | 400 | 1350 | 1900 | 4,5 |
| 11658(..59)-04x2,5 | 5,5 | 4x2,5 | 400 | 2000 | 2700 | 4,5 |
| 11658(..59)-05x1,0 | 7,5 | 5x1 | 400 | 1000 | 1500 | 4,5 |
| 11658(..59)-05x1,5 | 5,5 | 5x1,5 | 400 | 1350 | 1900 | 4,5 |
| 11658(..59)-07x1,0 | 6,0 | 7x1 | 3A | 3A | 5,0 | |
| 11658(..59)-07x1,5 | 5,5 | 7x1,5 | 4,5A | 4,5A | 5,0 | |
| 11658(..59)-08x1,0 | 5,5 | 8x1 | 3A | 3A | 5,0 | |
| Ausführung in IP 65, ohne Überhitzungschutz | ||||||
| 11658(..59)-02x1,0/IP 65 | 14,0 | 2x1 | 900 | 1400 | 4,0 | |
| 11658(..59)-03x1,5/IP 65 | 10,0 | 3x1,5 | 1200 | 1800 | 4,0 |

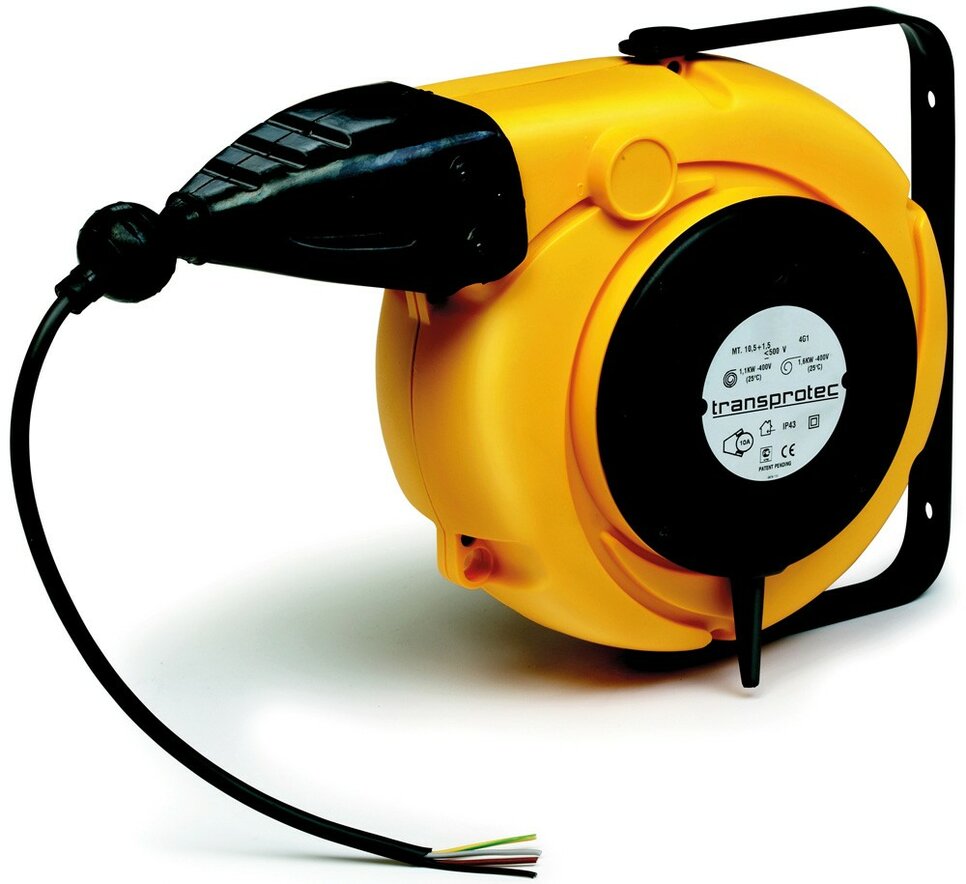

11659
Protection class IP 43, with additional mouthpiece for improved cable routing and higher protection class
