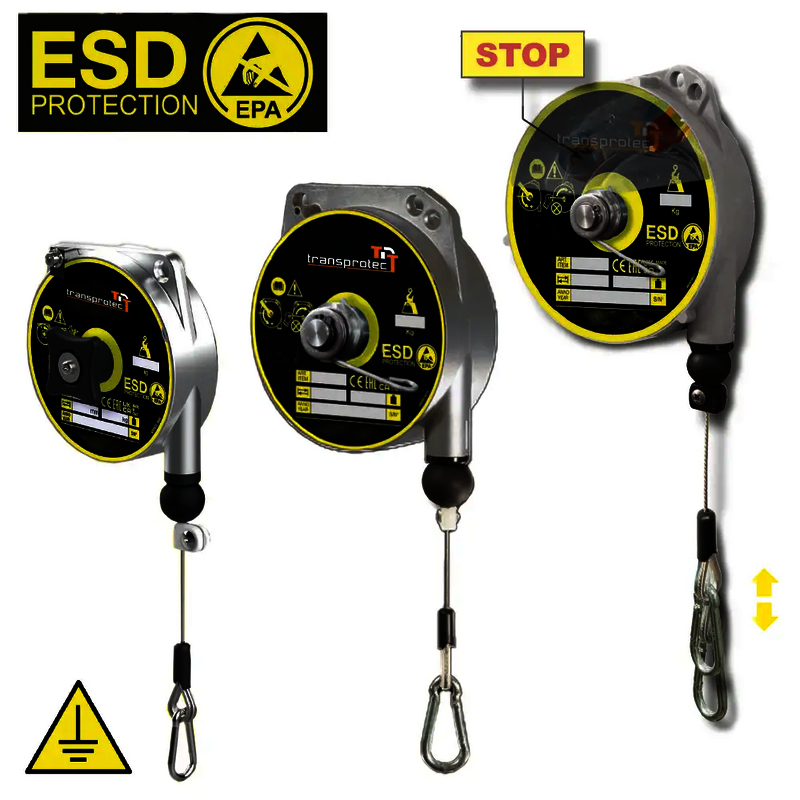

Spring Balancer 1093 EPA (ESD-PROTECTED AREA)

0.2 - 14 kg • 1.6 - 2.5 m Rope Extension

Retractor 1093 for Electrostatic-Discharge-Protected Areas and Individual ESD Workstations

Technical Features:

Housing made of die-cast aluminum
Stainless steel cable
Low-friction cable guide
Continuously adjustable load range
Adjustable extension stop
Suspension: Safety hook
Optional three-point suspension

Safety Features:

Protection against electrostatic discharge (ESD) – prevents damage to sensitive electronic components
Fall protection: In the event of spring failure, the load is secured from falling (for load capacities > 3 kg)

Federzug 1093 für elektrostatisch geschützte Bereiche und ESD-Einzelarbeitsplätze

Hier unverbindlich Anfragen!

Spring Balancer 1093 ESD mini – up to 3 kg

Typ	Load capacity range	Cable extension	Weight
Typ	(kg)	(mm)	(kg)
109310ES	0,2 - 0,5	1,6	0,55
109311ES	0,4 - 1,0	1,6	0,57
109312ES	1,0 - 2,0	1,6	0,60
109313ES	2,0 - 3,0	1,6	0,74

Spring Balancer 1093 ESD medium – up to 8 kg

Typ	Load capacity range	Cable extension	Weight
Typ	(kg)	(mm)	(kg)
109320ES	1,0 - 2,5	2,0	1,67
109321ES	2,0 - 4,0	2,0	1,9
109322ES	4,0 - 6,0	2,0	1,98
109323ES	6,0 - 8,0	2,0	2,28

Spring Balancer 1093 ESD large – up to 14 kg

Typ	Load capacity range	Cable extension	Weight
Typ	(kg)	(mm)	(kg)
109336LES	0,5 - 2,0	2,5	3,14
109336ES	2,0 - 4,0	2,5	3,14
109337ES	4,0 - 6,0	2,5	3,30
109338ES	6,0 - 8,0	2,5	3,36
109339ES	8,0 - 10,0	2,5	3,43
109340ES	10,0 - 14,0	2,5	3,58

Spring Balncer1093 ESD large – up to 14 kg with Locking Mechanism

This retractor is equipped with a locking function that allows the stroke to be easily locked and released directly at the load using a simple control.

Typ	Load capacity range	Cable extension	Weight
Typ	(kg)	(mm)	(kg)
109346LES	0,5 - 2,0	2,5	3,14
109346ES	2,0 - 4,0	2,5	3,14
109347ES	4,0 - 6,0	2,5	3,32
109348ES	6,0 - 8,0	2,5	3,38
109349ES	8,0 - 10,0	2,5	3,48
109350ES	10,0 - 14,0	2,5	3,62

Designated Protection Zone in Production

An ESD-protected area (EPA) is a controlled zone designed to prevent electrostatic charging in order to protect sensitive electronic components.

Electronic components are made of extremely small structures and are therefore particularly vulnerable to electrostatic discharge: ESD (ElectroStatic Discharge).
An ESD event can damage or destroy circuits, potentially leading to partial or complete failure.
Such damage is often not immediately visible and may only become apparent over time.
