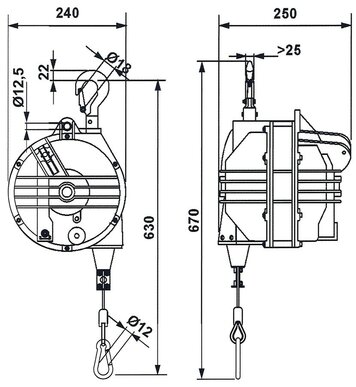

Balancer 16936(..), 16937(..)
10 - 105 kg - 2.0 m cable extension - with stainless steel cable
Technical features:
- Housing made of robust cast aluminum
- Steel wire rope (stainless steel)
- Load range: infinitely variable, precisely adjustable
- Drum body: ball bearing mounted
- Rope length: adjustable
- Suspension: safety hook, rotatable
Safety device:
- Additional safety suspension
- Fall protection in the event of spring breakage
Available Options
- Rubber Protective Cover
- Food Industry Version
Balancer Models 16936... and 16937... with 2 m Cable Travel
Both balancer series feature a cable travel of 2,000 mm.
Depending on the model series, the individual load capacity ranges cover different weight intervals:
- Balancer Series 16936… covers load capacity ranges in 5 kg or 10 kg intervals.
- Balancer Series 16937… covers load capacity ranges in 15 kg intervals.
| Type | Load Capacity Range (kg) | Weight (kg) | Articcle No. | Rubber Protective Cover (Option) | Food Industry Version (Option) |
|---|---|---|---|---|---|
| 169361 | 10- 15 | 9,2 | 202382 | 202383 | On request |
| 169362 | 15 - 20 | 9,5 | 202388 | 202389 | On request |
| 169363 | 20 - 25 | 9,8 | 202394 | 202395 | On request |
| 169364 | 25 - 30 | 10,2 | 202400 | 202401 | On request |
| 169365 | 30 - 35 | 10,6 | 202402 | 202403 | On request |
| 169366 | 35 - 45 | 11,0 | 202405 | 202406 | On request |
| 169367 | 45 -55 | 11,3 | 202407 | 202408 | On request |
| 169368 | 55 - 65 | 12,3 | 202414 | 202415 | On request |
| 169369 | 65 -75 | 13,2 | 202417 | 202418 | On request |
| 169370 | 75 - 90 | 16,1 | 202423 | 202424 | Not available |
| 169371 | 90 - 105 | 17,2 | 202426 | 202426 | Not available |

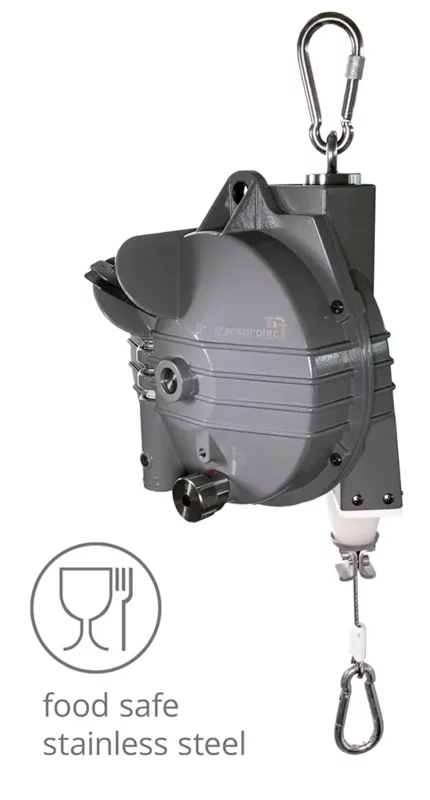

Balancer: Food Industry Version
The 16936... balancer series is also available in a version designed for food industry applications.
It is designed for use in humid environments with frequent steam exposure and provides excellent resistance to aggressive cleaning agents and chemicals used in cleaning and sterilisation processes.
The use of NSF H1-certified lubricants in accordance with ISO 21469 ensures safe and hygienic operation without the risk of product contamination.
- External fittings made of stainless steel
- Internal components made of stainless steel
- Aluminium housing with a high-performance Rilsan® coating for reliable protection against oxidation and chemical attack, including resistance to:
- Steam cleaning
- High-pressure cleaning
- Aggressive detergents
- Cleaning agents
- Cleaning and sterilising agents
- NSF H1-certified food-grade lubricant
- Rope guide, shock absorber and rope end cap made of food-grade plastic
- What are the requirements for a balancer used in the food industry?
A balancer intended for use in the food industry should be designed to minimise the risk of product contamination through the careful selection of materials. It must also withstand intensive cleaning procedures involving high-pressure water, detergents and sterilising agents.
Materials such as stainless steel, food-grade plastics and corrosion-resistant coatings are commonly used. In addition, only food-grade lubricants should be used to ensure safe and hygienic operation.
