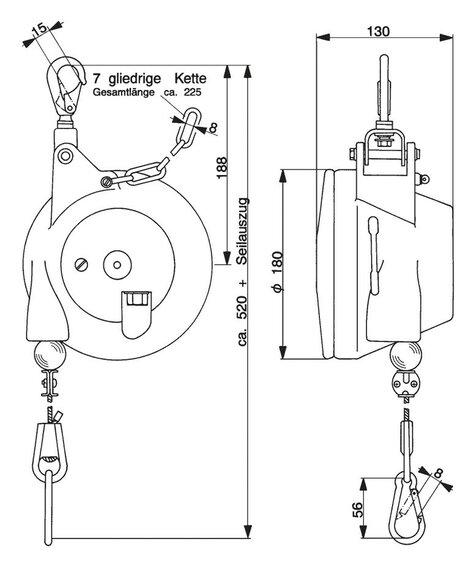

3.0 - 21 kg - 2.0 m cable extension - optionally with locking device
Technical features:
Safety device:
| Item - No. | Cable pull-out | Load range | Weight |
| (m) | (kg) | (kg) | |
| 1672301 | 2 | 3,0 - 5,0 | 2,9 |
| 1672302 | 2 | 4,5 - 7,0 | 3,1 |
| 1672303 | 2 | 6,0 - 10,0 | 3,2 |
| 1672304 | 2 | 9,0 - 14,0 | 3,4 |
| 1672305 | 2 | 13,0 - 17,0 | 3,6 |
| 1672306 | 2 | 16,0 - 21,0 | 3,8 |
| Artikel - Nr. | Seilauszug | Traglastbereich | Gewicht |
| (m) | (kg) | (kg) | |
| 1672311 | 2 | 3,0 - 5,0 | 3,1 |
| 1672312 | 2 | 4,5 - 7,0 | 3,3 |
| 1672313 | 2 | 6,0 - 10,0 | 3,4 |
| 1672314 | 2 | 9,0 - 14,0 | 3,6 |
| 1672315 | 2 | 13,0 - 17,0 | 3,8 |
| 1672316 | 2 | 16,0 - 21,0 | 4 |
Show product data sheet
